how to calculate radius of focal point for a parabolic reflector

diameter 38"

depth 4"



in Geometry Answers by

Your answer

Your name to display (optional):
Privacy: Your email address will only be used for sending these notifications.
Anti-spam verification:
To avoid this verification in future, please log in or register.

1 Answer

The formula is 4fx=y2, where f is the focus, x is the depth and y the fixed radius. This applies if the reflector is cylindrical (constant parabolic cross-section) or if its a paraboloid (rotated parabola).

y=38/2=19 in, x=4 in, so 16f=192=361, f=361/16=22.5625in.

The equation of the parabola is x=4y2/361.

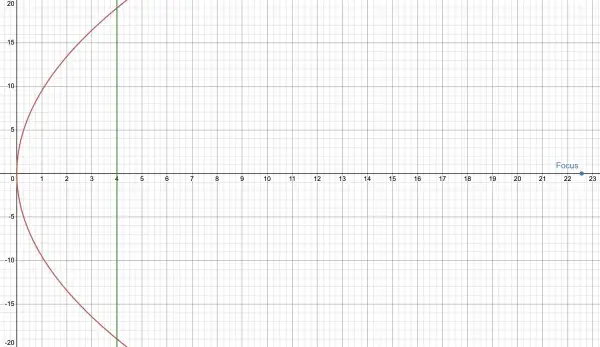

The red curve represents the parabola of the reflector. The green line (length 38") represents the limit of the parabola (depth 4"), its diameter. The focal point is shown, where all incident light would be focused.

by Top Rated User (1.1m points)
